TUDOR DESIGN,LEADED GLASS , WITH STEEL INSULATED BACK SECTION SEE BELOW

MONTEVIDEO 4 SECTION

8 REC. TOP

BOSTONIAN 4 SECTION 8 SQUARE ARCH TOP

MONTEVIDEO 3 SECTION WITH 10 SQUARE TOP

Email- info@alliancegaragedoors.com

Buisness phone: 416-230-5115

Montevideo 4 Section Double 16 Square Top

Montevideo 4 Section 8 Square Arch Top

Carriage House 4 Section Custom Design Arch Top with Leaded Glass

Yorkminster 4 Section T & G 6 Rec Arch Top

Palladian 3 Section with 6 Rec Top

Tudor 4 Section with leaded glass size 9ft.x7ft

Madison Double 3 Section with T & G , 20 Rec top

Whitehall 4 Section with Diagonal  T&G Montvideo Square Top Windows

Double-click to edit text, or drag to move.

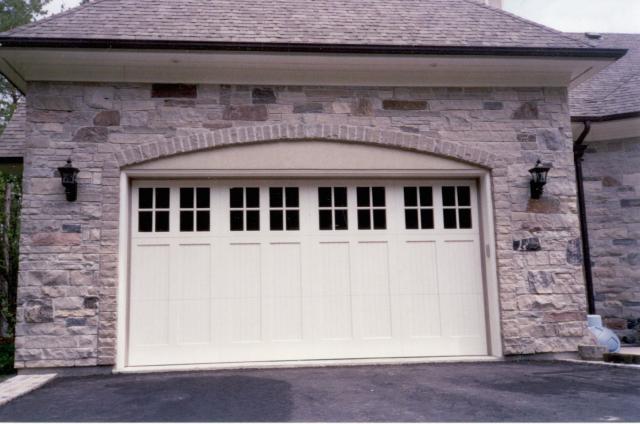

Westmount 3 section 10 square arch top

Palladian double 4 section 12 square top with steel insulated back sections see below

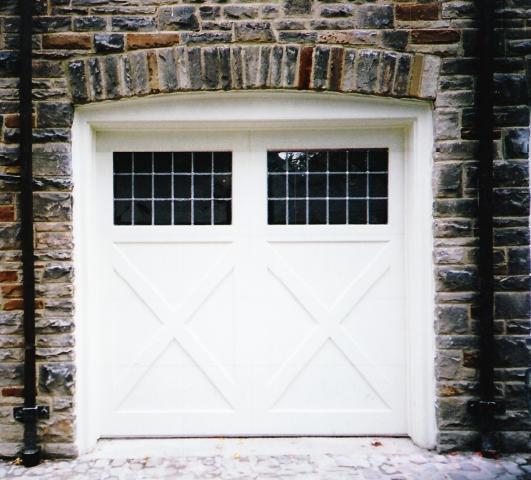

Carriage house 5 section custom design with arch top

Heritage 4 section with leaded glass

Montevideo 8 square arch top

Carriage House Series

Top-of-the-line quality and good looks.

These are flush insulated mahogany plywood or steel insulated sectional back panels which feature heavy duty long life internal framing.

Choice of quality cedar,fir,mahogany,or other solid wood overlays are crafted to face of door to create virtually any custom garage door design.

Custom glazing is available on all design choices.

1.DSB GLASS 1/8"

THERMAL 1/2"

2.GLASS STOP 1/4"

3.HARDWOOD SKIN 1/4"

4.INTERNAL FRAMING

1 1/16"

5.POLYSTYRENE 1 1/8"

6.HARDWOOD SKIN 1/4"

7.CUSTOM WOOD OVERLAY

3/4"

TOTAL THICKNESS 2 1/4 "

1.DSB GLASS 1/8" / THERMAL 1/2"

2.GLASS STOP 1/4"

3.HARDWOOD OR STEEL SKIN 1/4"

4.INTERNAL FRAMING 1 1/16 "

5.POLYSTYRENE 1 1/8"

6. HARDWOOD SKIN 1/4"

7. OVERLAY 3/4"

8. CUSTOM OVERLAY 3/4"

(FOR RECESSED PANEL DESIGN)

TOTAL THICKNESS 3"

NOMINAL DIMENSIONS

Customize Your Garage Doors to Exact Specifications. With Guaranteed Quality.
